Carriage systems

LIFTLINER LL40-2

  • Winch traction 40 kN
  • Weight 1.050 kg
  • Standard wire rope Ø 11/120 mm/m
  • Sky line Ø 18-22 mm

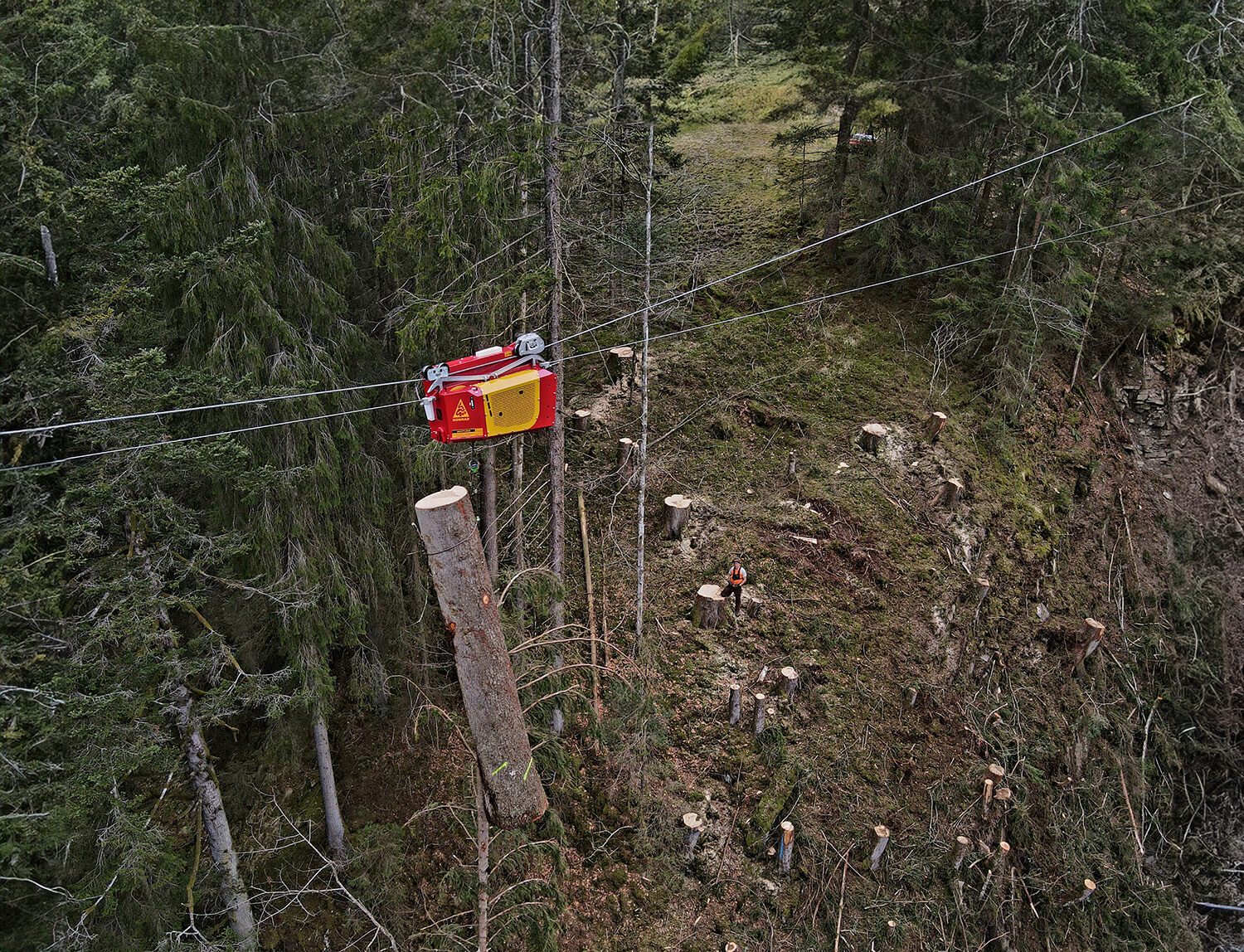

The innovative carriage system

With the remote controlled carriage Liftliner, it is possible to work with the functions “lifting/lowering” at the same time.

In that case, a particularly gentle and efficient work in thinning is possible, as well as a pinpoint placement of the logs at the unloading. Due to the separate hoist winch, the mainline cable and the haul back cable is attached to the carriage, and therefore has only the task of pulling the carriage.

The cable clamp on the skyline is switched only when the cable breaking device is activated, or by manual actuation. Therefore the carriage Liftliner LL40-2 works practically without wear on the main-and skyline.

Technical Data
LIFTLINER LL40-2

Radio system

Remote control with display

Extremely light with high battery capacity

All the settings are possible on the remote control

Error diagnosis display of operating data of the diesel engine and hydraulic system on the display

Display of radio frequency and signal strength

Universal for all Konrad machines with KFS20, KFS 16

Find partner
LIFTLINER LL40-2

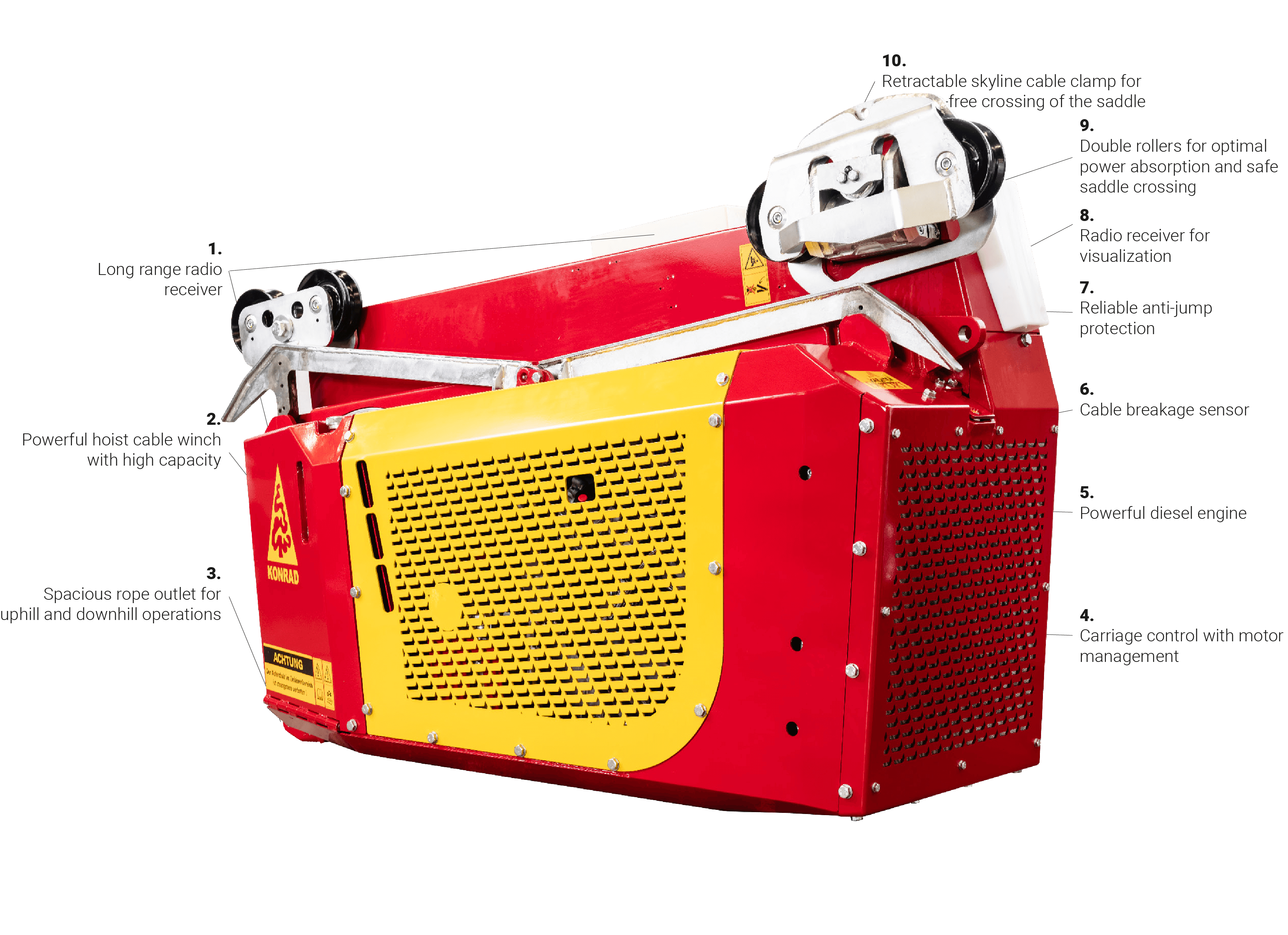

Highlights
LIFTLINER LL40-2

Technical Data

General information
Weight
1050 kg ¹)
Sky line diameter
Ø18 - 22 mm
Operating voltage
12 V
Remote control system
KFS-16, KFS-20
Diesel engine
Type designation
HATZ 4H50 TICD, 4-cylinder diesel engine with turbo and intercooler
Power
55 kW (bei 2300 U/min)
Torque
240 Nm (bei 1700 U/min)
Displacement
1,95 l
Diesel tank capacity
25 l
Winch
Drive motor
Radial piston motor
Winch pulling force
40 kN
Standard wire rope
Ø 11 mm / 100 m
Hydraulic system
Hydraulik oil pump
Axial piston pump, closed oil circuit
Max. operating pressure
400 bar
Hydraulic oil specification
HVLP 46
Hydraulic system filling capacity
22 l

1) Weight with resources; diesel tank empty

Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.

The manufacturer reserves the right to make technical modifications and improvements.
