Harvester

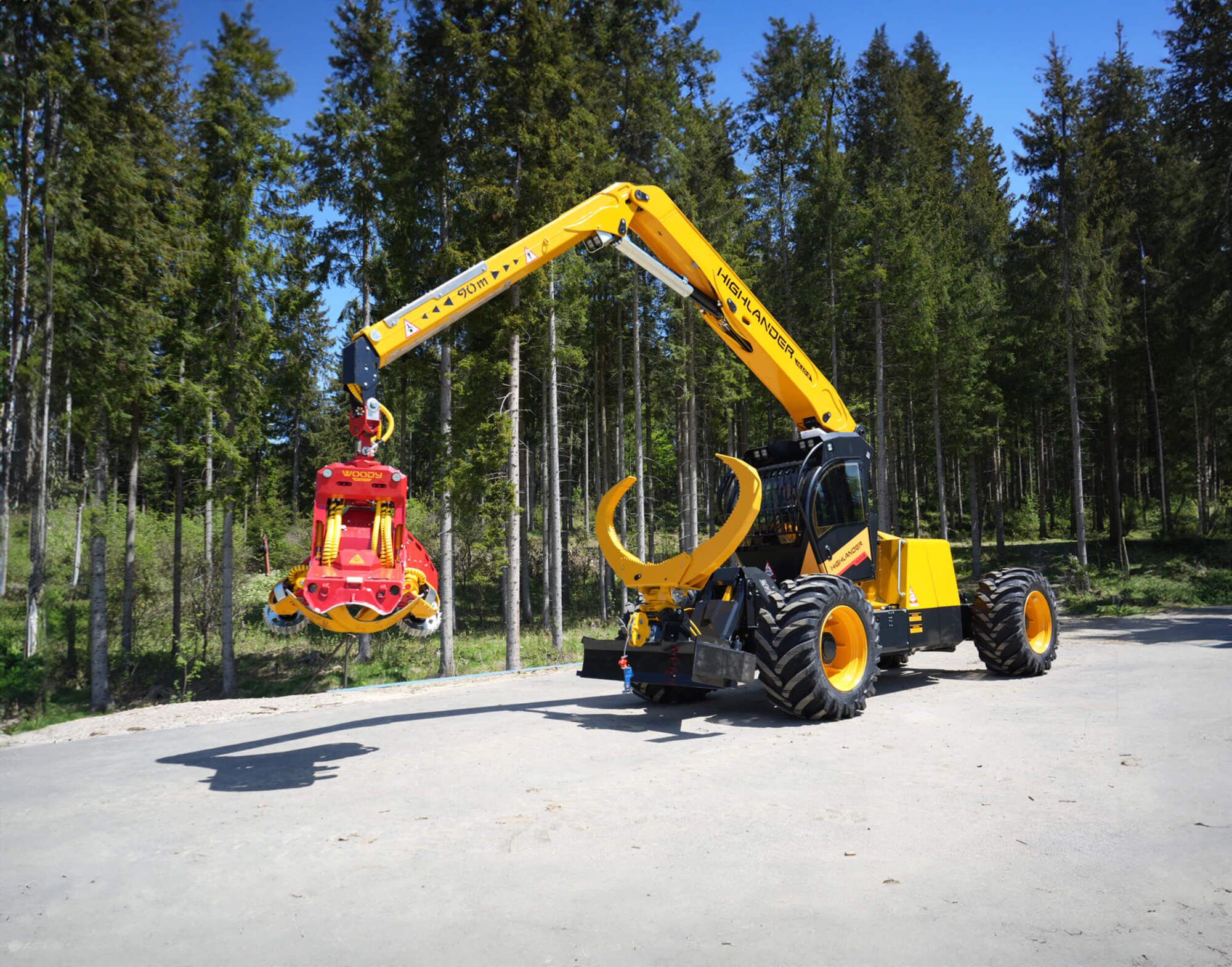

Highlander HL10-2

  • Drive type 4x4
  • Power 212 kW
  • Pulling force 235 kN
  • Typcial operating weight 22.500 kg

The powerful universal machine

The HL10-2 convinces with its maneuverability and is just as suitable for thinnings as for final fellings.

Climbing ability is always assured thanks to four-wheel drive with engageable hydraulic differential lock and large drive wheels. The stability as well as the slew moment of the mache is always maintained thanks to automatic level compensation. The short wheelbase combined with 2-wheel-, 4-wheel- and crab steering, makes the HL10-2 extremely manoeuvrable.

Technical Data Download PDF

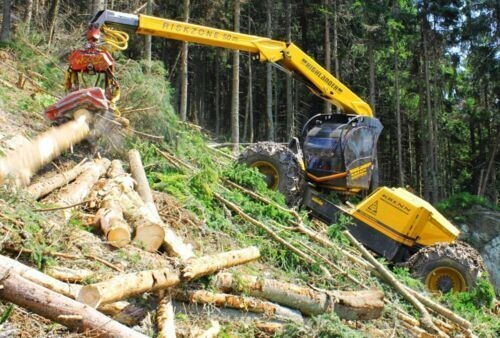

Forestry machine operating in a forest environment

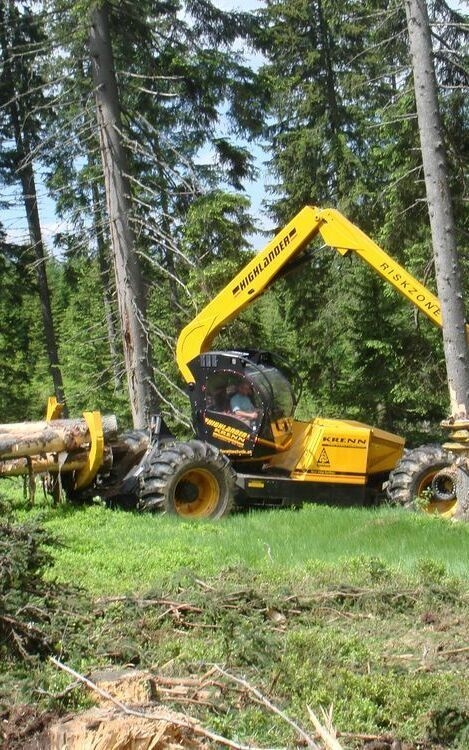

Heavy forestry machine processing timber on a hill

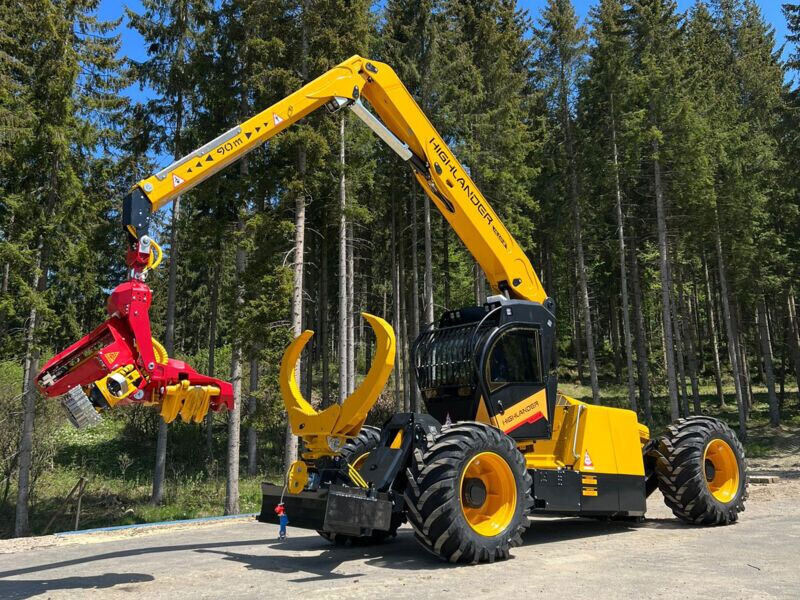

Highlander HL10-2

The advantages

  1. Enormous terrain flexibility due to synchronised step and drive moment

  2. Integrated traction winch for driving support in steep terrain

  3. Safe and well arranged cabin

  4. High performance harvester with flexible operation possibilities

  5. Endless turnable crane-cabin-unit

  6. Optimum maneuverability due to four or six controlled and driven wheels

  7. Strong crane with woody harvester head

Find partner
Highlander HL10-2

Dimensions
Highlander HL10-2

Technical Data

General Information
Typcial operating weight
22500 kg ¹)
Control system
KTC 1.0
Harvester units
WH50-1, WH60-1
Engine
Motor type
Stage V, FPT 6 Zylinder CR
Power (2200 U/min)
212 kW
Torque(1500 U/min)
1160 Nm
Total displacement
6,7 l
Diesel tank capacity
340 l
Crane System
Crane type
HL24
Crane lifting torque
240 kNm
Tilt angle
+23,6° / -9,5°
Tilt angle incl. wheel rockers
+28,0° / -14°
Range
10,8 m
Slewing torque
44 kNm
Slewing range
360° (endlos)
Chassis
Drive
Axial piston motor with gearbox
Brake system
Multiple-disc brake
Type of steering
Front-whee, rear-whee, all-wheel and crab steering
Steering system
Steering axle, fixed
Single-wheel steering
Steering angle ²)
+27° / -27°
Standart Tyres
710 / 70 R34
Pulling force
235 kN
Speed
18 km/h
Axle Track
2240 mm
Hydraulic system
Drive pumps
axial piston pump, closed oil circuit, pmax 450 bar
Working pump
axial piston pump, open oil circuit, pmax 350 bar
Power takeoff pump
axial piston pump, open oil circuit, pmax 350 bar
Filling capacity hydraulik oil tank
250 l
Options
Rigging winch RW90-1
max. 80 kN pulling force (adjustable), Cable: Ø13mm / 120 m
Traction winch TW90-1
max. 90 kN pulling force (adjustable), with cable discharger wrap arm, usable as rigging winch, Cable: Ø14mm / 300m
Clam bunk
with integrated quick-change system, adjustable pivot and swing brake, ca. 2 m² loading area

1) Version: traction winch inkl. cable, clam bunk, WH 60-1 , 1/2 tank filling, without chains
2) Without chains
3) Extension: 2500 mm
4) Extension: 2000 mm
5) incl. dozer widening

Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.

The manufacturer reserves the right to make technical modifications and improvements.
