T-SKIDDER
The future of timber harvesting in steep terrain
KONRAD Forsttechnik
Working with the T-SKIDDER

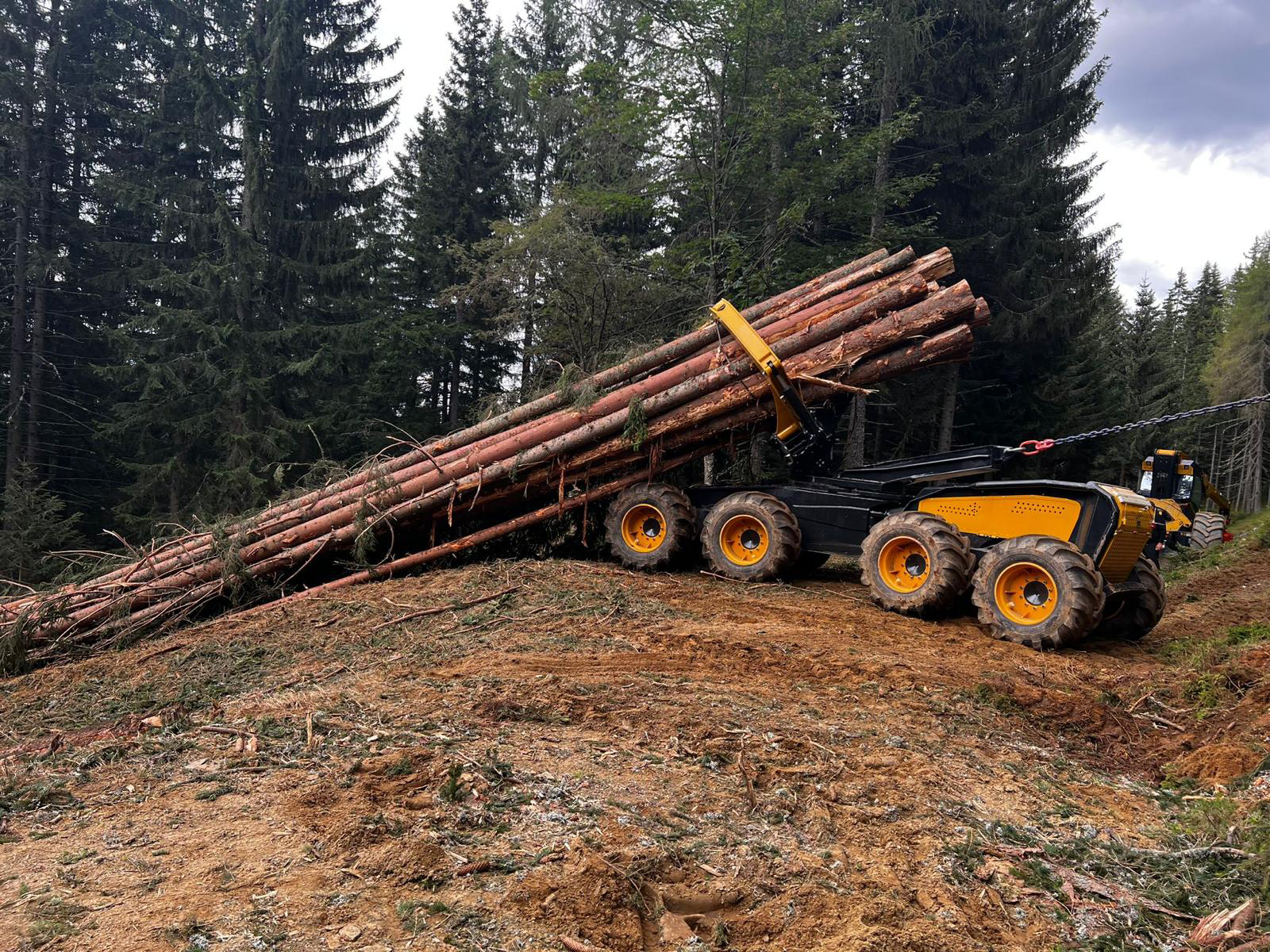

The T-SKIDDER is a GPS guided autonomous carrier supported by traction winch (T-Winch) for extraction of full tree in steep slopes.

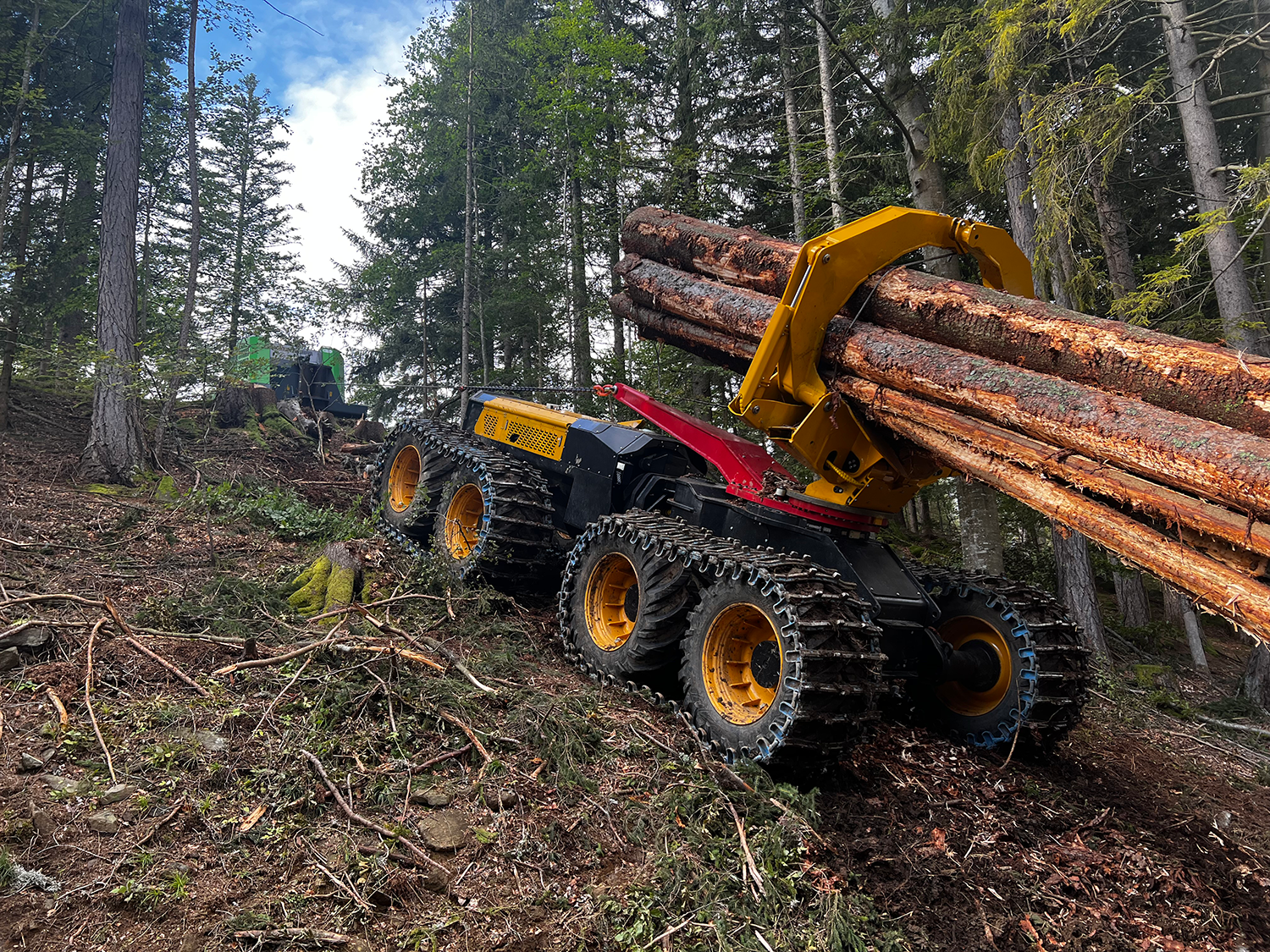

The carriage is designed as articulated 8x8 vehicle with short wheelbase for good manoeuvrability, good ground clearance as well as low centre of gravity for maximum stability.

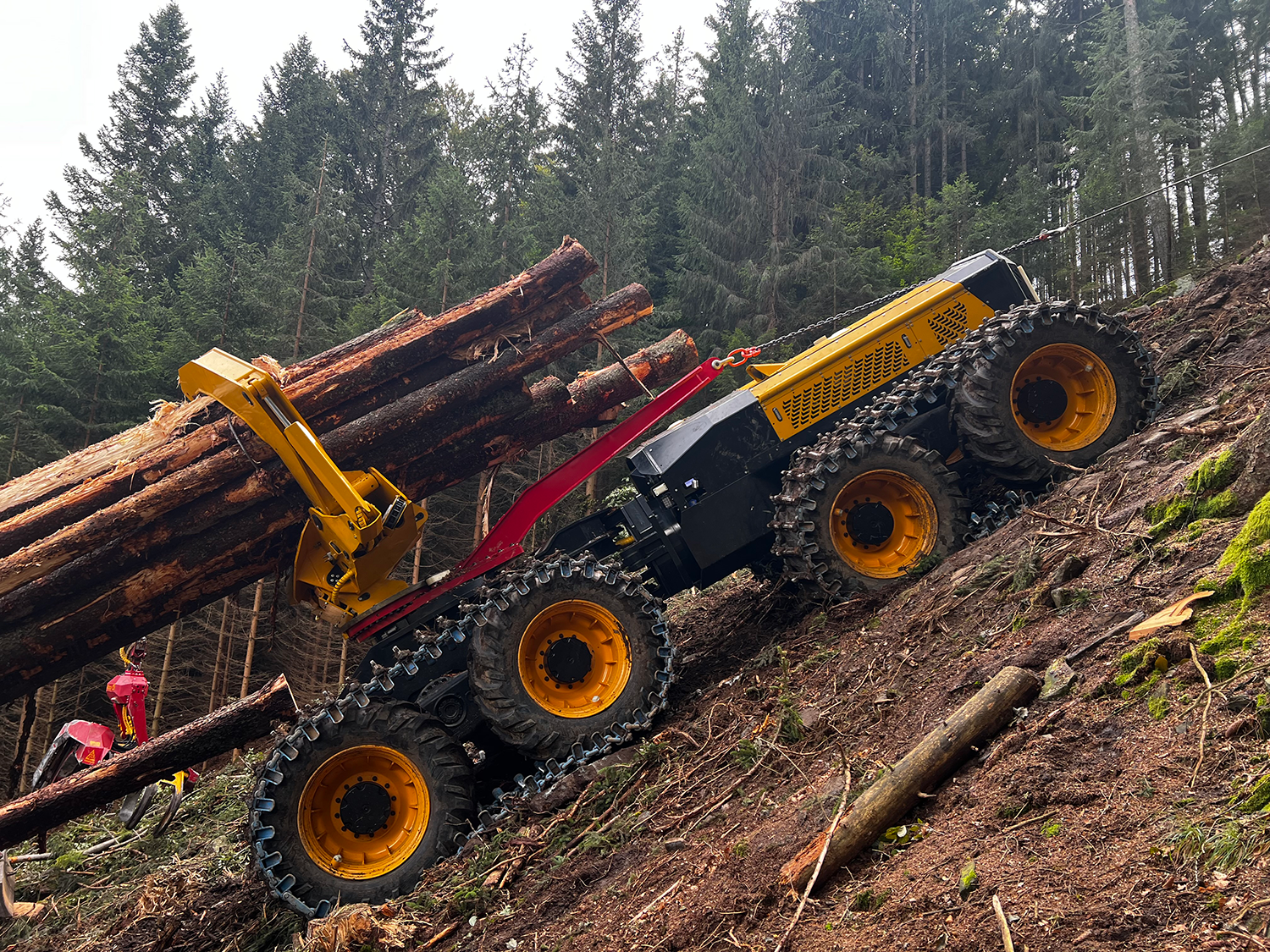

The pivoted attachment point is mounted on the rear frame and allows free steering without following the pulling cable of the T-winch, even cross the slope.

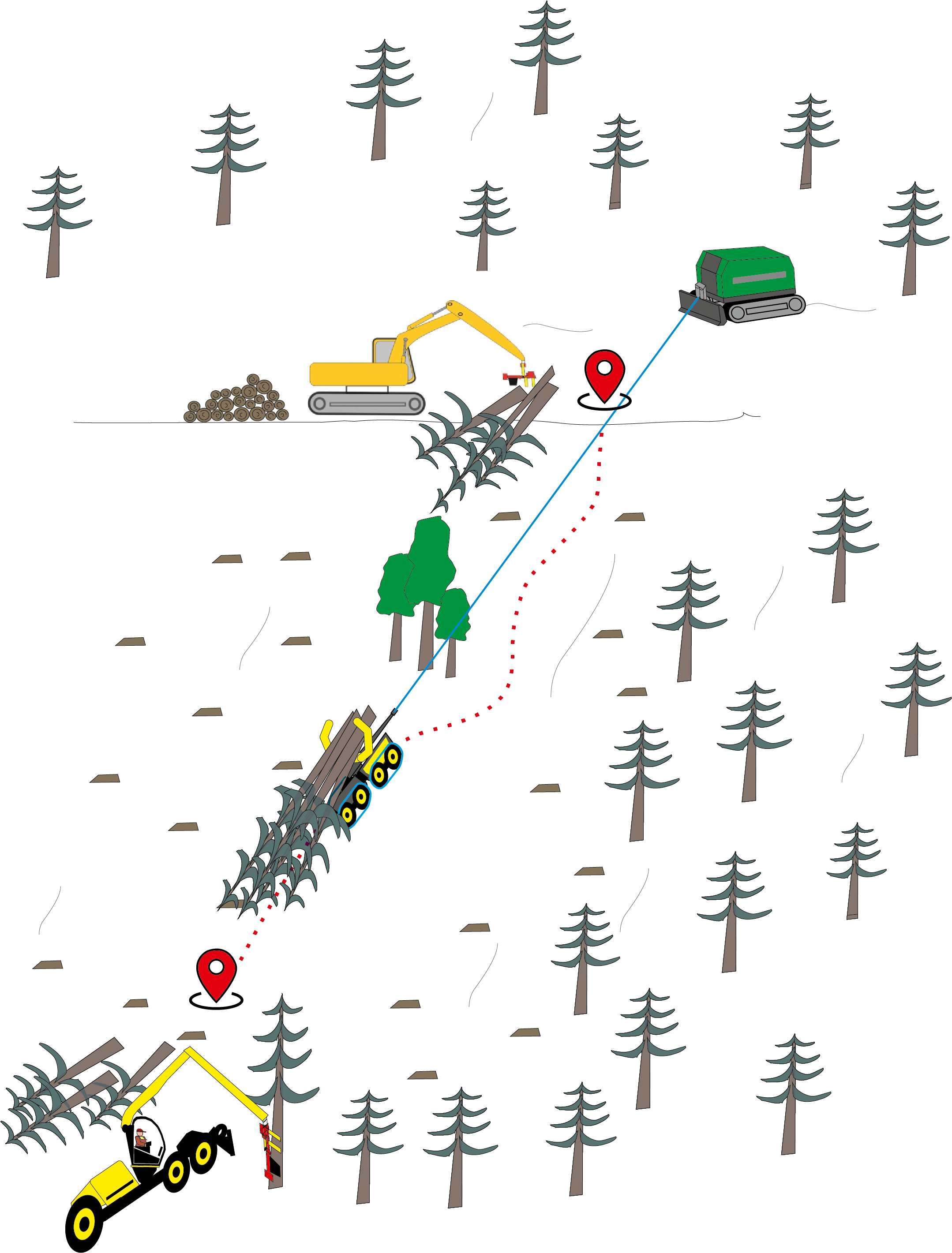

The T-SKIDDER drives independently from the loading location to the landing site using a GPS signal.
Due to the perfect directional stability, obstacles on the way are avoided.
The route is recorded the first time it is driven on by radio control, in order to avoid obstacles, wet spots etc. The T-SKIDDER now always follows this route, but it can also be remotely shifted, adjusted or changed.
These unique features proof best practices in steep terrain. Above that it´s a safe working method no manual logging as well as less people in the field.
T-SKIDDER
Technical data
General Information
| Typical operating weight | 28.000 kg |
|---|---|
| Clam-bunk | 3 m² |
Engine
| Stage V | |
|---|---|
| Motor type | watercooled PERKINS 4-cylinder turbo diesel engine |
| Power (2200 U/min) | 212 kW |
| Torque (1500 U/min) | 1160 Nm |
| Total displacement | 6,7 l |
| Diesel tank capacity | 300 l |
Chassis
| Portal tandem axle | |
| Drive | Portal tandem axle with axial piston motor and 2-speed gearbox |
| Brake system | Multiple-disc brake |
| Steering system | Articulated steering |
| Steering angle | +45° / -45° |
| Entanglement | +25° / -25° |
| Standard tyres | 710/55 R34 |
| Pulling force | 230 kN |
| Speed | max. 20 km/h |
| Axle track | 3480 mm (transport position 3000 mm) |
| Ground clearance | 705 mm |
Chassis
| Track drive | |
|---|---|
| Speed | 5 km/h |
| Axle track | 1800 mm |
| Chain width | 450 mm |
| Ground clearance | 370 mm |
Hydraulic system
| Drive pumps | axial piston pump, closed oil circuit, pmax 390 bar |
|---|---|
| Working pump | axial piston pump, closed oil circuit, pmax 250 bar |
| hydraulic oil specification | HVLP 46 |
| Filling capacity hydraulik oil tank | 150 l |
1) Without chains and tracks
Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.
The manufacturer reserves the right to make technical modifications and improvements.
