Tower Yarders

KMS KM/KR40-3

  • Tower height 11,0 m
  • Pulling force 40 kN
  • Power 288 PS

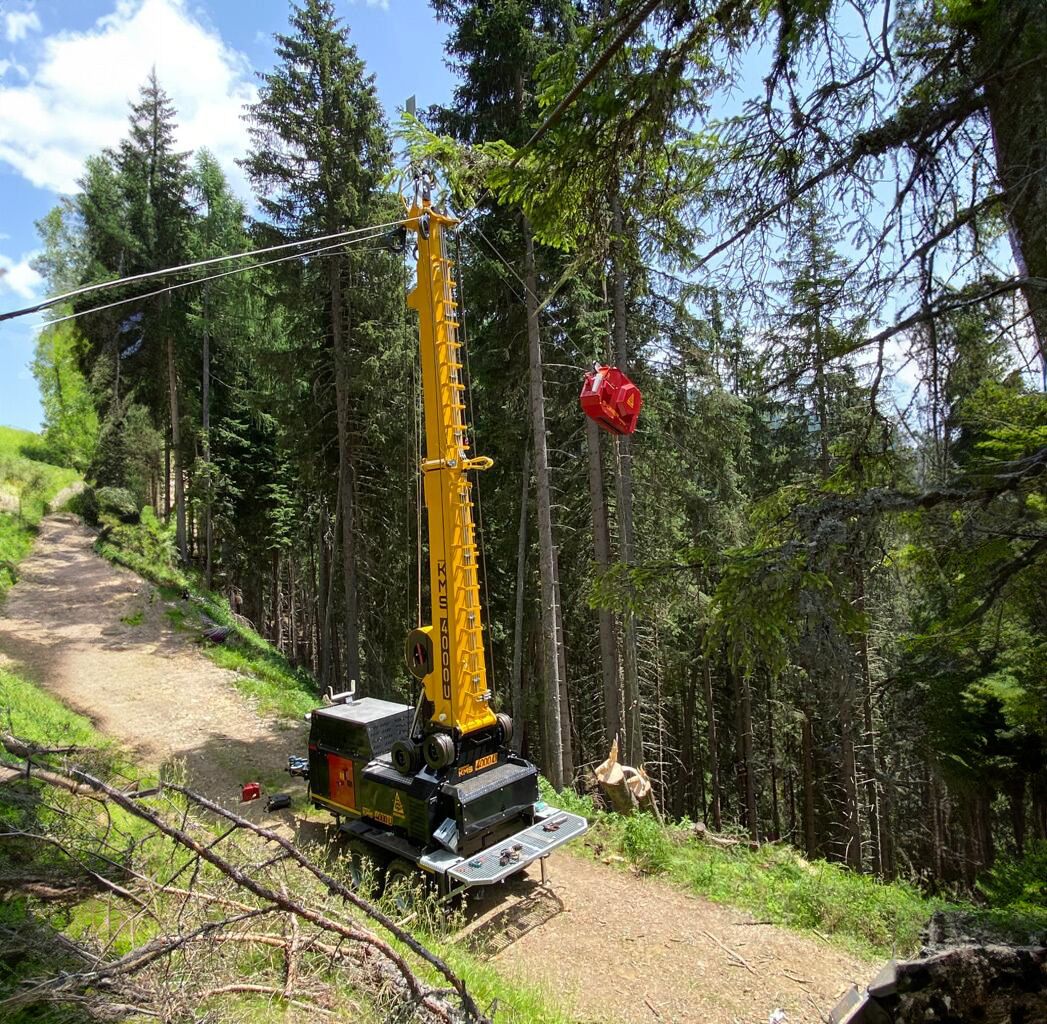

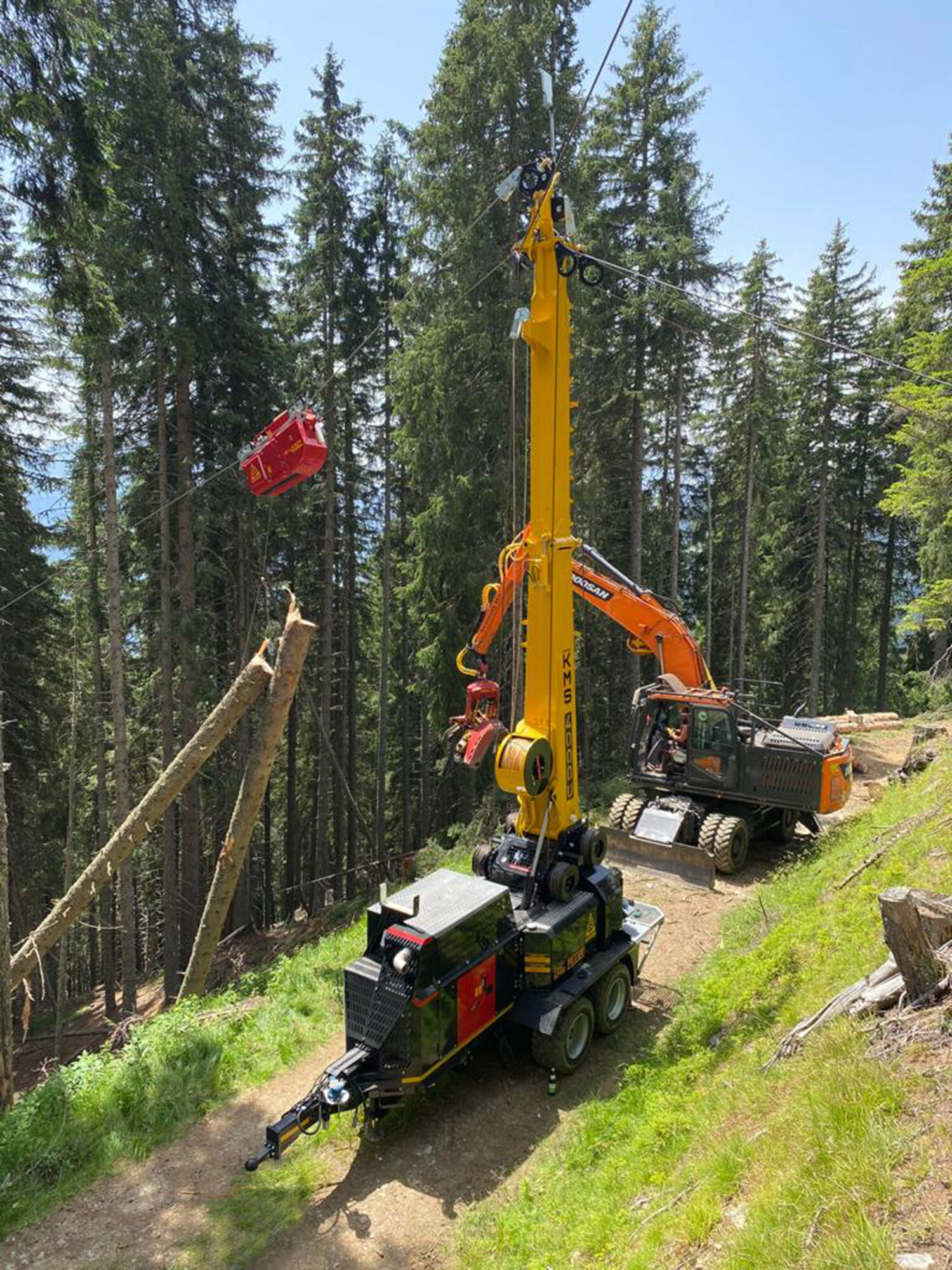

The compact yarding system

The KM40-3 is a remote controlled skyline crane which is mounted on a tandem trailer. The operation of the installation is remote controlled. To increase the productivity, an automatic drive function of the carriage is standard. Very comfortable is the rigging up of this installation.

All the functions can be operated by remote control. This installation connects a high grade of working safety with an outstanding productivity.

The KMS, type KM40-3 is available as a 2-cable, as well as a 3-cable version. Options such as straw line winch, long cable version or additional guy line winches show how versatile this compact machine is.

Technical Data Download PDF
A mobile forestry crane with bright yellow arm and black base, lifting logs in a winter forest setting with coniferous trees and fallen autumn leaves.
KMS KM/KR40-3

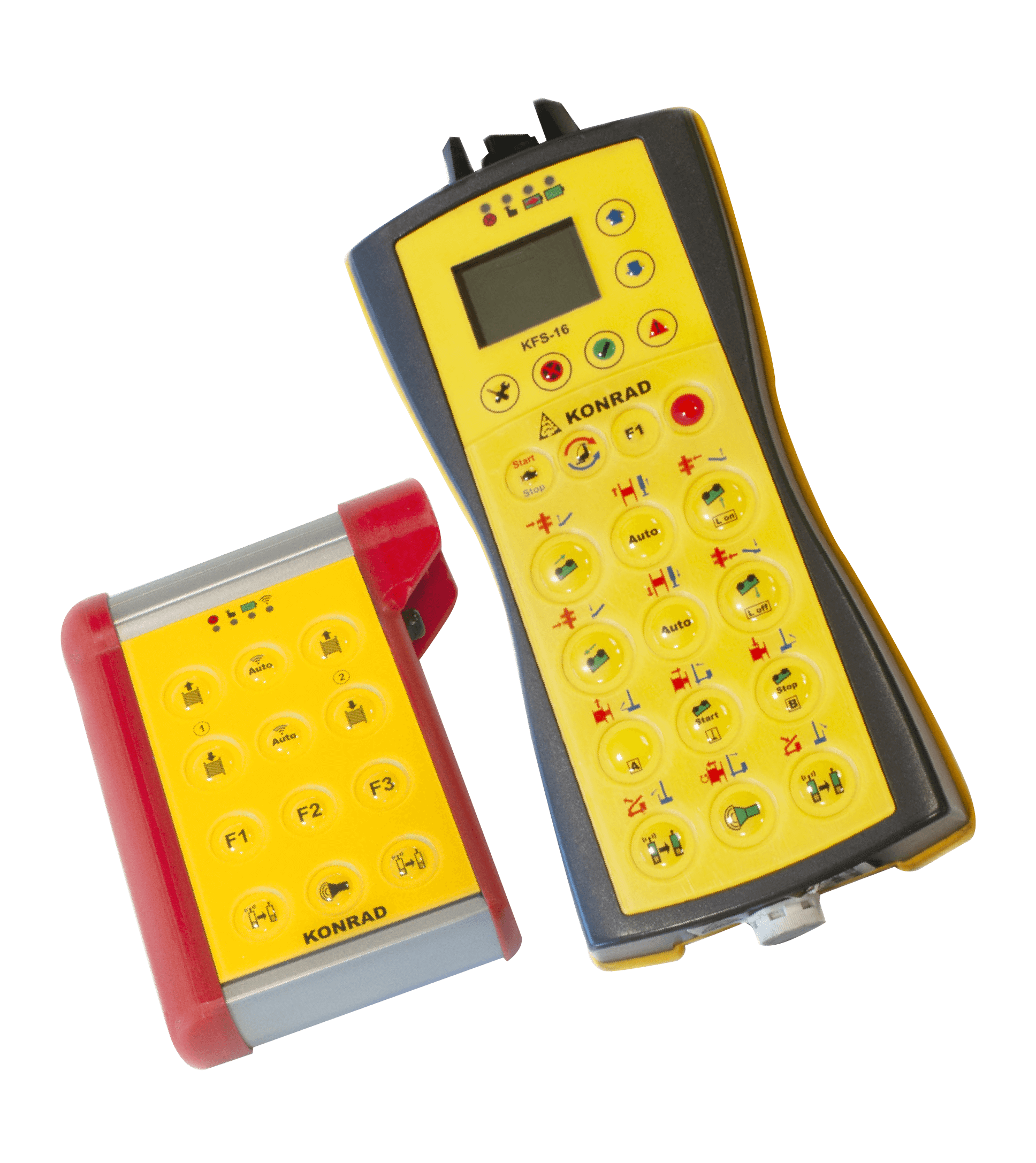

Radio technology

For a quick installation and a safe handling, the following functions are controlled by remote:

Supports, Putting up the tower, Radio technology, Guyline drums, Skyline winch, Ram cylinder for tension part of drum, Guyline winch, Mainline winch, Carriage start/stop, Winch in carriage, Automatic drive function, Function transfer radio control and Horn

Find partner
KMS KM/KR40-3

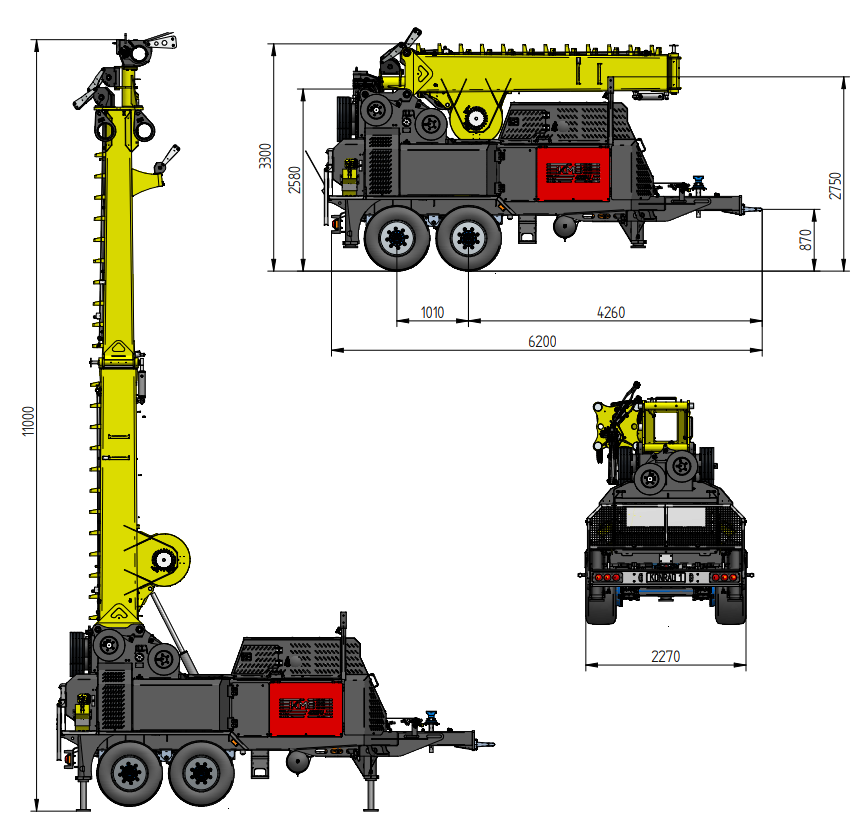

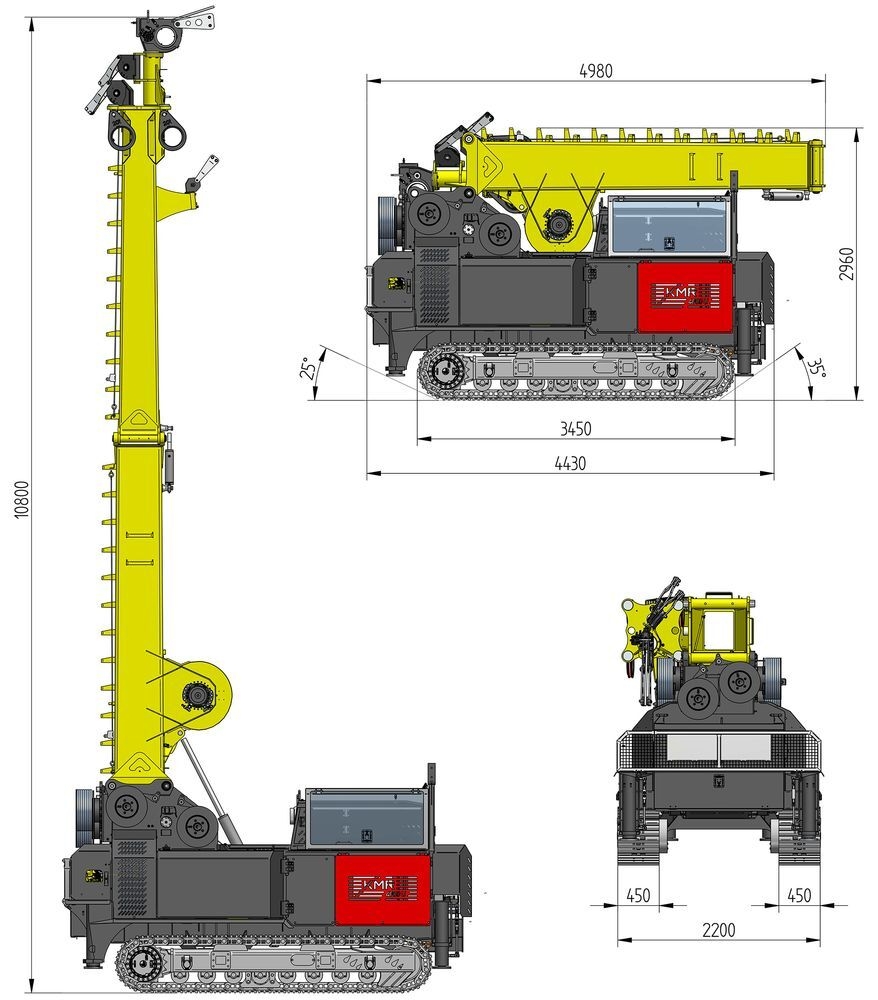

Dimensions
KMS KM/KR40-3

Highlights
KMS KM/KR40-3

Technical Data

General information
Weight
13260 - 14550 kg ¹)
Transport dim. (L x W x H)
6,09 x 2,26 x 3,22 m
Tower height
11,0 m ¹) ²)
Control system
KTC 1.0
Remote System
KFS-16, KFS-20
Tandem unit
air braked, mechanical parking brake, construction speed: 40 km/h ⁴)
Tyres
445/45 R19,5
Auxilliary drive ³)
hydrostatic auxiliary drive up to 12 km/h, with cable or radio control

1) Abhängig von der jeweiligen Maschinenausführung
2) Ausführung: 3-Seil, mit Tragseilausstoßer
3) Optional
4) Mit Sonderausführung bis 80 km/h möglich

Sonderausstattung: Neben der Serienausstattung steht eine breite Palette an Sonderausstattungen zur Verfügung. Weitere Informationen zu Serien- und Sonderausstattungen erhalten Sie bei Ihrem KONRAD-Vertriebspartner.

Technische Änderungen und Verbesserungen sind dem Hersteller vorbehalten.
